The 2nd generation NVIDIA RTX graphics cards , based on the Ampere architecture , promise gamers of all kinds the ultimate gaming experience and performance never before achieved in the most realistic and immersive PC games. Improving the performance of RT and Tensor cores as well as flow multiprocessors is at the heart of this new high-tech architecture, the sole objective of which is to offer an ultimate and exceptional gaming experience. NVIDIA GeForce RTX 3000 graphics cards are quite simply the most powerful cards NVIDIA has ever designed.

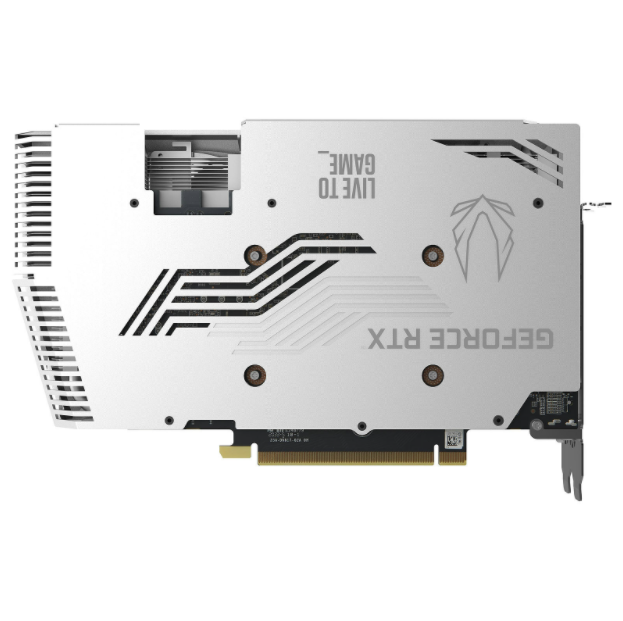

The Zotac RTX 3070 Twin Edge OC White Edition LHR features exclusive IceStorm 2.0, Freeze Tech and Fire Storm technologies that provide better cooling, quieter operation and improved performance. It also has a metal backplate to ensure better rigidity and better heat dissipation.
MAXIMUM FRAME RATE
Based on the phenomenal capabilities of AI, NVIDIA Deep Learning Supersampling (DLSS) is a revolutionary rendering technology that brings you a whole new level of visual fidelity with Tensor Core processors dedicated to GPU AI GeForce RTX. DLSS harnesses the power of an optimized deep neural network to accelerate frame rates while generating stunning visuals of incomparable clarity. This significant performance boost allows gamers around the world to maximize ray tracing settings and increase output resolutions.
GENERAL INFORMATIONS |
Name |

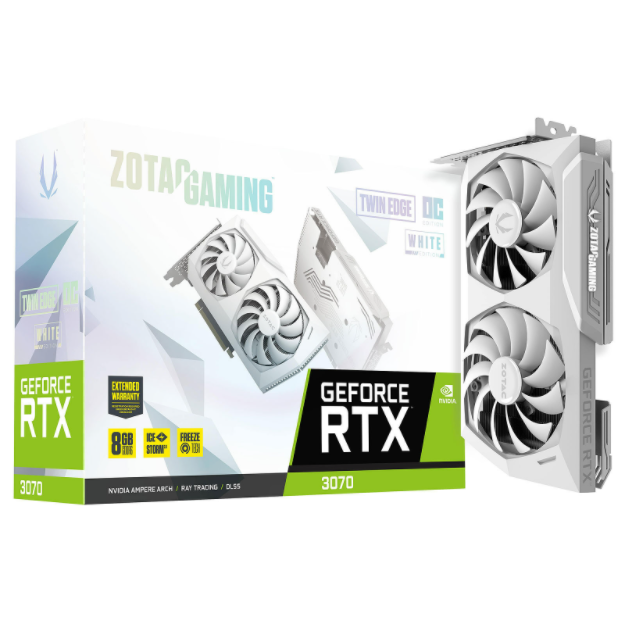

ZOTAC GeForce RTX 3070 Twin Edge OC White Edition LHR |
Mark |
ZOTAC | |
Model |
ZT-A30700J-10PLHR | |
GRAPHICS CHIPSET |
Graphics chipset |
NVIDIA GeForce RTX 3070 |
GPU brand |
NVIDIA | |
Chipset frequency |
1500 MHz | |
Boosted frequency |
1755 MHz | |
Overclockée |
Yes | |
GPU name |
1 | |
Bus |
PCI Express 4.0 16x | |
MEMORY |
Video memory size |
8 Go |
Memory interface |
256 bit(s) | |
Video memory frequency |
14000 MHz | |
Type of memory |
GDDR6 | |
ARCHITECTURE |
Stream processors |
5888 |
Support Direct X (version) |
12 | |
TECHNICAL SPECIFICATIONS |
Multi-GPU |
Any |
DISPLAY |
HD Ready |
Yes |
4K UHD Resolution (s) |
Yes | |
VR Ready (virtual reality) |
Yes | |
VirtualLink compatible |
No | |
CONNECTIVITY |
Video outputs |
3 X DisplayPort Female |
1 X HDMI Female | ||
Number of screen (s) |
4 | |
Power connector (s) |
2 X PCI Express 8 Pin | |
DESIGN |
Cooling type |
Active (fansink) |
Consumption |
220 W. | |
Low profile |
No | |
Format |
Dual Slot | |
Number of PCI slots |
2 | |
LED |
Yes | |
LED RGB |
No | |
Length |
231.9 mm | |
Width |
141.3 mm | |
Thickness |
41.5 mm | |
Use |
Gamer NVIDIA RTX | |
GUARANTEES |
Commercial guarantee |
3 years manufacturer |
